LESER 卫生安全阀 TYPE 484

| Product info |
Metric unit |
US unit |
| 关键特征 |
Small to medium capacity, low dead space ratio through weldable vessel connection |
Small to medium capacity, low dead space ratio through weldable vessel connection |
| 口径 |
DN 25 - DN 40 |
1" - 1 1/2" |
| 孔口 |
D - F |
D - F |
| 实际孔口直径 DO |
13 - 25 mm |
0,512 - 0.984 in |
| 实际孔口面积 AO |
133 - 491 mm2 |
0.206 - 0.761 in2 |
| 压力 |
0,1 - 16 bar |
1.5 - 232 psig |
| 温度 （依照 DIN EN） |
-45 to 150 °C |
-49 to 302 °F |
| 阀体材料 |
1.4435 (BN2) |
SA 479 316L |
| 阀门连接 |

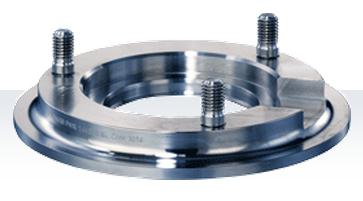

Inlet: vessel connection type 5034 for welding into the vessel? |
Inlet: vessel connection type 5034 for welding into the vessel? |
| Outlet: normally welded end connection acc. to ASME DIN 11850, Clamps acc. to ASME BPE / DIN 32676, ISO 2852 or DIN EN ISO 1127, Aseptic clamp acc. to DIN 11864 T1 Series A or B (with nut), DIN 11851 or Neumo Sterile aseptic thread (with nut) |
Outlet: normally welded end connection acc. to ASME DIN 11850, Clamps acc. to ASME BPE / DIN 32676, ISO 2852 or DIN EN ISO 1127, Aseptic clamp acc. to DIN 11864 T1 Series A or B (with nut), DIN 11851 or Neumo Sterile aseptic thread (with nut)? |
| Flanged connection acc. to DIN 11864 or Aseptic flange groove or flat face |
Flanged connection acc. to DIN 11864 or Aseptic flange groove or flat face |
| 波纹管 |
EPDM, FFKM (only d0= 13 mm) |
EPDM, FFKM (only d0= 13 mm) |
| 装载类型 |
弹簧 |
弹簧 |
| 认证 |
PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, ASME Sec. VIII Div. 1, CRN, AQSIQ, TR, GOSPROMNADZOR |
PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, ASME Sec. VIII Div. 1, CRN, AQSIQ, TR, GOSPROMNADZOR |
| 特殊 |
HyTight Assembly |
HyTight Assembly |
| Designed and manufactured acc. to: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP class VI and FDA 21 CFR |
Designed and manufactured acc. to: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP class VI and FDA 21 CFR |
|
