  dusterloh


德国DUSTERLOH Fluidtechnik是一家具有百年历史的气动马达与液压马达制造商,产品广泛使用于各种工业行业.

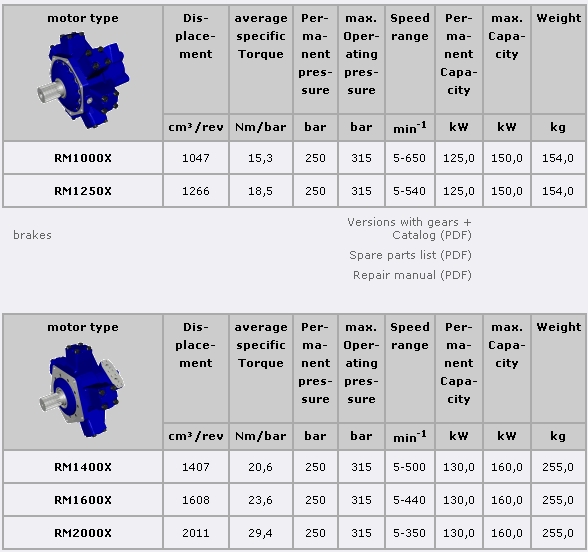

SitemapImpressumenglishdeutsch HomeHydraulic motorsPneumatic motorsPneumatic startersPower units You are here: Hydraulic motors RM1000X - RM5000X Technical data / Type series RM1000X - RM5000X Precision drives with constant displacement Vg = 1047 cm3/rev - 5278 cm3/rev motor type Dis- place- ment average specific Torque Per-ma- nent pres- sure max. Oper- ating pres- sure Speed range Per-ma- nent Capa- city max. Capa- city Weight cm3/rev Nm/bar bar bar min-1 kW kW kg RM1000X 1047 15,3 250 315 5-650 125,0 150,0 154,0 RM1250X 1266 18,5 250 315 5-540 125,0 150,0 154,0 Versions with gears + brakes Catalog (PDF) Spare parts list (PDF) Repair manual (PDF) motor type Dis- place- ment average specific Torque Per-ma- nent pres- sure max. Oper- ating pres- sure Speed range Per-ma- nent Capa- city max. Capa- city Weight cm3/rev Nm/bar bar bar min-1 kW kW kg RM1400X 1407 20,6 250 315 5-500 130,0 160,0 255,0 RM1600X 1608 23,6 250 315 5-440 130,0 160,0 255,0 RM2000X 2011 29,4 250 315 5-350 130,0 160,0 255,0 Versions with gears + brakes Catalog (PDF) Spare parts list (PDF) Repair manual (PDF) motor type Dis- place- ment average specific Torque Per-ma- nent pres- sure max. Oper- ating pres- sure Speed range Per-ma- nent Capa- city max. Capa- city Weight cm3/rev Nm/bar bar bar min-1 kW kW kg RM2500X 2533 37,1 250 315 3-310 145,0 180,0 318,0 RM3150X 3167 46,4 250 315 3-250 145,0 180,0 318,0 Versions with gears + brakes Catalog (PDF) Spare parts list (PDF) Repair manual (PDF) motor type Dis- place- ment average specific Torque Per-ma- nent pres- sure max. Oper- ating pres- sure Speed range Per-ma- nent Capa- city max. Capa- city Weight cm3/rev Nm/bar bar bar min-1 kW kW kg RM4000X 4013 58,8 250 315 2-200 150,0 190,0 500,0 RM4500X 4508 66,0 250 315 2-175 150,0 190,0 500,0 RM5000X 5278 77,3 250 315 2-150 150,0 190,0 500,0 Versions with gears + brakes Catalog (PDF) Spare parts list (PDF) Repair manual (PDF) General points Range summary AE10 - AE45 KM11 - KM110 RM80N - RM250N RM250X - RM900X RM1000X - RM5000X Gears + brakes Flow distributors Accessories Documentation Online inquiry ? Düsterloh GmbH & Movingelements GMBH HTML, CSS und Typo3: OLIGOFORM.com - Web · Design · Entwicklung und gute Beratung

dusterloh
