Nippon Gear's jacks, the culmination of over 45 years of tradition and experience, are the ultimate jacks. They convert rotational motion to linear motion through gears, so they eliminate the need for hydraulic pumps or compressors; in addition, they are compact, produce little noise, and are easy to maintain. They can be computer-controlled to provide automatic steady-state motion or accurate cycle operation. Also, they are not limited to lifting/lowering operations; they can be used for inclines, pulling, opening/closing, adjustment, holding, and almost every conceivable application.

This is the lightest and most compact high performance screw jack. It has been constructed with a high accuracy worm gear and a trapezoidal thread. It is very easy to use. Standard Capacity: 2 kN/5kN Extremely Light-Weight Design While Preserving the Strength Compact Housing; either top or bottom flanges can be selected for installation. Self-Lock is kept at any position during a stroke. Bellows for thread protection, Limit Switch and RC Encoder for position control etc are available for option. Catalog PDF(3.33MB) These are standard screw jacks with a wide variety of uses and can be self-locked. It has been constructed with a high accuracy worm gear and a trapezoidal-shaped screw axis. For normal use, the brake is not needed. Standard Capacity: 10~1000kN Self-Lock is kept at any position during a stroke Screw axis is made of high-grade carbon steel (clockwise); a prevent key is also available Long-life is maintained with the smooth movement by lubricating the reduction gear's mechanism section with grease Bellows for screw axis protection, Handwheel for manual operation, Trunnion Base, Limit Switch for control, RC Encoder, etc are also available

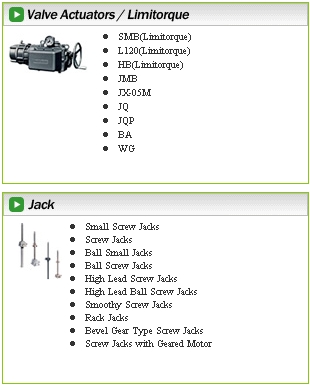

Under license from Flowserve Limitorque USA who has more than 70 years of history and field experiences in valve actuators, Nippon Gear has been manufacturing actuators in Japan with high appraisal and deep reliance. We have adopted a torque motor having a large starting torque and small inertia, which is optimum for valve opening and closing operation, a faultless limit switches with wide applicability. These valve actuators find applications in a wide range of industrial environments, from petroleum, nuclear, and generating plants to water/sewer pipelines advanced. Further, we are undertaking improvement development of actuators with our own new technologies.

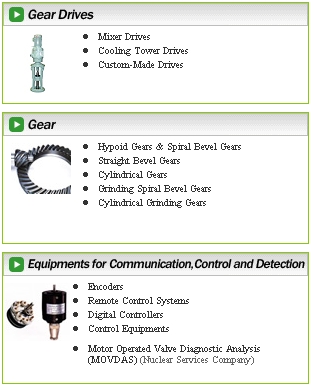

Nippon gear’s line of gears, which are manufactured with traditional technologies and state-of-the-art facilities, contribute significantly to automotive, railroad, industrial machine, and other industries both in Japan and around the world. The achievement of these high-quality products extend beyond the design of the gears themselves; the overall mechanical system is first analyzed and examined, and the gears are engineered by ultra-precise, high-speed computers. The possibilities for these gears are limitless in the machinery industry, where engineers are continually striving to improve performance.

Control Equipments & Control Systems The G-Link System is a network system developed for the field equipments with high-speed, anti-noise, is being supplied to various plants. Especially in the network system of motor operated valves, about 5,000 electrical valve actuators are contributed for reduction of labor at plants. Nippon Gear is developing and offering the digital systems can correspond to the various needs; contributes to labor saving and efficiency improving automation systems with high performance, cost-effectiveness and high-durability. Sensor Control The RC Encoder has been successful and has received high appraisal as the multiple revolution type, battery less absolute encoder with original construction and precise gear technology. The RC encoder ranges from 12bit to 16bit while the high resolution RC encoder ranges from 12bit to 20bit or the CT resolution which can be made depending on the user's applicability. Condition Monitoring System The Motor Operated Valve Diagnostic Analysis System (MOVDAS) is an epoch-making diagnosis system that quantitatively grasps the state of things of the electrical valve. MOVDAS can diagnose during an operation. It evaluates the performance in the start. Then it calculates the percentage of deteriorated parts. It also suggests the appropriate time to change the parts. Management tendency is possible with this machine; the valve element and engine can also be summarized as a health diagnosis. This is the best solution. The construction of continuous supervisory system at the nuclear power generation facility not only contributes to reduction of routine inspection period and dose decrease of radioactive rays in workers but also cost reduction effect depending on rational work distribution and as assembly/ disassembly degradation in efficiency evasion. The Motor Operated Valve Diagnostic Analysis System (MOVDAS) is Nippon Gear Co.,ltd. and The Japan Atomic Power Company's joint development product.
