| KUKDONG电动葫芦 |
| |
钢丝绳电动葫芦
标准型钢丝绳电动葫芦
单轨轨道式葫芦 |
双轨道式葫芦 |
组合式葫芦 |

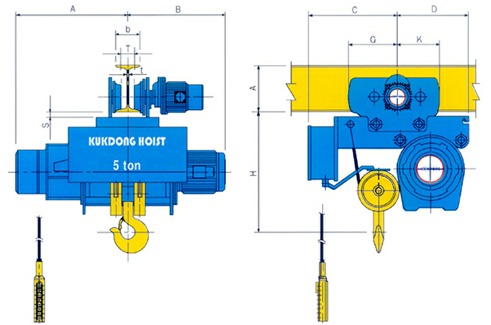

低举型葫芦 |
|
|
|
|
|
|
|
|
|
|
|
|

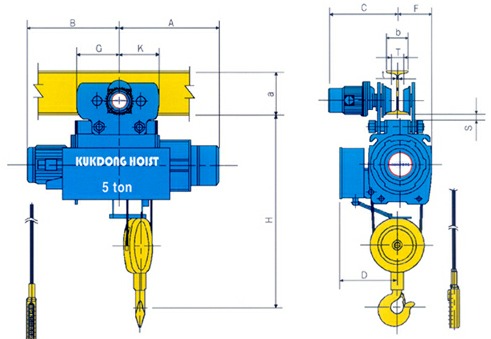

 单轨轨道式葫芦（1 t ~ 5 t）
容量 (ton) |
1 |
2 |
2.8 |
3 |
5 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SM1-H6(12)-MH |
SM2-H6(12)-MH |
SM2.8-H6(12)-MH |
SM3-H6(12)-MH |
SM5-H6(12)-MH |
High-Low |
SM1-H6(12)-ML |
SM2-H6(12)-ML |
SM2.8-H6(12)-ML |
SM3-H6(12)-ML |
SM5-H6(12)-ML |
Low-High |
SM1-L6(12)-MH |
SM2-L6(12)-ML |
SM2.8-L6(12)-MH |
SM3-L6(12)-MH |
SM5-L6(12)-MH |
Low-Low |
SM1-L6(12)-ML |
SM2-L6(12)-ML |
SM2.8-L6(12)-ML |
SM3-L6(12)-ML |
SM5-L6(12)-ML |
提升 |
Max. Lift(m) |
6(12) |
6(12) |
6(12) |
6(12) |
6(12) |
速度
(m/min) |
High speed
( 50/60Hz) |
10/12 |
8.4/10 |
7.5/9 |
7.5/9 |
4.7/5.6 |
Low speed
( 50/60Hz) |
6.6/8 |
5.4/6.5 |
3.7/4.5 |
3.7/4.5 |
3.5/4.2 |
电机
(Kw x P) |
High speed |
2.2 x 4 |
3.7 x 4 |
5.0 x 4 |
5.5 x 4 |
5.5 x 6 |
Low speed |
1.5 x 6 |
2.5 x 6 |
2.5 x 8 |
2.8 x 8 |
4.2 x 8 |
钢丝绳 |
Construction |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm)x
No. of ropes |
8 x 2 |
10 x 2 |
12 x 2 |
12 x 2 |
16 x 2 |
制动器 |
DC magnet disc brake |
横动
|
速度
(m/min) |
High speed
( 50/60Hz) |
20/24 |
20/24 |
20/24 |
20/24 |
20/24 |
Low speed
( 50/60Hz) |
13/16 |
13/16 |
13/16 |
13/16 |
13/16 |
电机
(Kw x P) |
High speed |
0.4 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
Low speed |
0.2 x 6 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
尺寸（约）
(mm) |
H |
815 |
980 |
1115 |
1115 |
1325 |
A |
400(500) |
470(570) |
520(620) |
520(620) |
625(715) |
B |
380(480) |
430(530) |
455(555) |
455(555) |
525(615) |
D |
275 |
310 |
365 |
365 |
405 |
G |
255 |
260 |
260 |
260 |
275 |
K |
200 |
225 |
225 |
225 |
275 |
I型梁和间距
(mm) |
a x b x t |
C |
F |
S |
T |
C |
F |
S |
T |
C |
F |
S |
T |
C |
F |
S |
T |
C |
F |
S |
T |
200 x 100 x 7 |
324 |
160 |
39 |
60 |
454 |
195 |
35 |
45 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
250 x125 x 7.5 |
337 |
160 |
37 |
85 |
467 |
195 |
34 |
76 |
465 |
200 |
34 |
76 |
465 |
200 |
34 |
76 |
485 |
240 |
46 |
60 |
300 x 150 x 10 |
349 |
160 |
32 |
110 |
479 |
195 |
29 |
95 |
475 |
200 |
29 |
95 |
475 |
200 |
29 |
95 |
490 |
240 |
40 |
85 |
最小曲率半径 (m)
|
1.5 |
1.8 |
1.8 |
1.8 |
2.3 |
重量(约)
(Kg) |
190(218) |
278(314) |
374(418) |
374(418) |
580(642) |

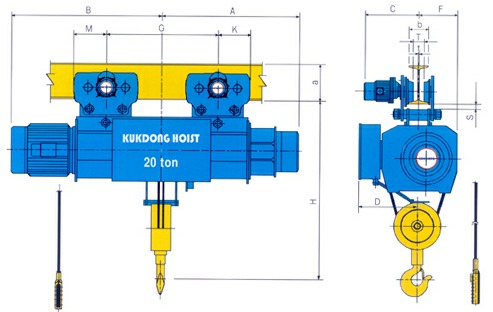

单轨轨道式葫芦（7.5 t ~ 20 t）
容量 (ton) |
7.5 |
10 |
15 |
20 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SM7.5-H12-MH |
SM10-H12-MH |
SM15-H12-MH |
SM20-H12-MH |
High-Low |
SM7.5-H12-ML |
SM10-H12-ML |
SM15-H12-ML |
SM20-H12-ML |
Low-High |
SM7.5-L12-MH |
- |
- |
- |
Low-Low |
SM7.5-L12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
速度
(m/min) |
High speed
( 50/60Hz) |
3.1/3.8 |
3.7/4.5 |
3.5/4.2 |
3.5/4.2 |
Low speed
( 50/60Hz) |
2.3/2.8 |
- |
- |
- |
电机
(Kw x P) |
High speed |
5.5 x 6 |
9 x 8 |
13 x 8 |
17 x 8 |
Low speed |
4.2 x 8 |
- |
- |
- |
钢丝绳 |
Construction |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm) x
No. of ropes |
14 x 4 |
16 x 4 |
20 x 4 |
22.4 x 4 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
Low speed
( 50/60Hz) |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
电机
(Kw x P) |
High speed |
0.75 x 4
(2units) |
0.75 x 4
(2units) |
1.5 x 4
(2units) |
1.5 x 4
(2units) |
Low speed |
0.5 x 6
(2units) |
0.5 x 6
2units) |
1.0 x 6
(2units) |
1.0 x 6
(2units) |
制动器 |
DC magnet disc brake |
尺寸(约)
(mm) |
H |
1460 |
1565 |
2115 |
2115 |
A |
925 |
990 |
1110 |
1160 |
B |
835 |
955 |
1170 |
1220 |
D |
460 |
510 |
640 |
640 |
G |
800 |
800 |
800 |
850 |
K |
275 |
275 |
300 |
300 |
M |
275 |
275 |
300 |
300 |
I型梁和间距
(mm) |
a x b x t |
C |
F |
S |
T |
C |
F |
S |
T |
C |
F |
S |
T |
C |
F |
S |
T |
300 x 150 x 10 |
480 |
295 |
35 |
68 |
480 |
320 |
35 |
68 |
- |
- |
- |
- |
- |
- |
- |
- |
450 x 175 x 13 |
497 |
295 |
30 |
93 |
497 |
320 |
30 |
93 |
580 |
400 |
32 |
72 |
580 |
400 |
32 |
72 |
600 x 190 x 13 |
510 |
295 |
25 |
118 |
510 |
320 |
25 |
118 |
590 |
400 |
32 |
92 |
590 |
400 |
32 |
92 |
最小曲率半径 (m) |
For Straight rails only |
重量(约) (Kg) |
910 |
1210 |
2030 |
2300 |

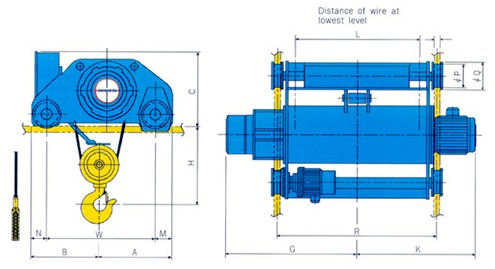

双轨道式葫芦（2 t ~ 5 t）
重量 (ton) |
2 |
2.8 |
3 |
5 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SD2-H12-MH |
SD2.8-H12-MH |
SD3-H12-MH |
SD5-H12-MH |
High-Low |
SD2-H12-ML |
SD2.8-H12-ML |
SD3-H12-ML |
SD5-H12-ML |
Low-High |
SD2-L12-MH |
SD2.8-L12-MH |
SD3-L12-MH |
SD5-L12-MH |
Low-Low |
SD2-L12-ML |
SD2.8-L12-ML |
SD3-L12-ML |
SD5-L12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
速度
(m/min) |
High speed
( 50/60Hz) |
8.4/10 |
7.5/9 |
7.5/9 |
4.7/5.6 |
Low speed
( 50/60Hz) |
5.4/6.5 |
3.7/4.5 |
3.7/4.5 |
3.5/4.2 |
电机
(Kw x P) |
High speed |
3.7 x 4 |
5.0 x 4 |
5.5 x 4 |
5.5 x 6 |
Low speed |
2.5 x 6 |
2.5 x 8 |
2.8 x 8 |
4.2 x 8 |
钢丝绳 |
Construction |
6 x 19 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm) x
No. of ropes |
8 x 4 |
9 x 4 |
9 x 4 |
12.5 x 4 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
20/24 |
20/24 |
20/24 |
20/24 |
Low speed
( 50/60Hz) |
13/16 |
13/16 |
13/16 |
13/16 |
电机
(Kw x P) |
High speed |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
Low speed |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
尺寸(约)
(mm) |
H |
415 |
420 |
420 |
510 |
R |
950 |
950 |
950 |
1150 |
A |
465 |
465 |
465 |
507 |
B |
390 |
390 |
390 |
474 |
C |
410 |
515 |
515 |
560 |
G |
750 |
785 |
785 |
940 |
K |
710 |
715 |
715 |
850 |
W |
650 |
650 |
650 |
760 |
D |
47 |
47 |
47 |
47 |
L |
680 |
690 |
690 |
890 |
M |
112 |
112 |
112 |
119 |
N |
93 |
93 |
93 |
102 |
Φ P |
140 |
140 |
140 |
165 |
Φ Q |
170 |
170 |
170 |
195 |
重量(约) (Kg) |
450 |
550 |
550 |
850 |
轨道(Kg/m) |
15 |
15 |
15 |
15 |
双轨道式葫芦（7.5 t ~ 30 t）
容量 (ton) |
7.5 |
10 |
15 |
20 |
30 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SD7.5-H12-MH |
SD10-H12-MH |
SD15-H12-MH |
SD20-H12-MH |
SD30-H12-MH |
High-Low |
SD7.5-H12-ML |
SD10-H12-ML |
SD15-H12-ML |
SD20-H12-ML |
SD30-H12-ML |
Low-High |
SD7.5-L12-MH |
- |
- |
- |
- |
Low-Low |
SD7.5-L12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
12 |
速度
(m/min) |
High speed
( 50/60Hz) |
3.1/3.8 |
3.7/4.5 |
3.5/4.2 |
3.5/4.2 |
2.3/2.8 |
Low speed
( 50/60Hz) |
2.3/2.8 |
- |
- |
- |
- |
电机
(Kw x P) |
High speed |
5.5 x 6 |
9 x 8 |
13 x 8 |
17 x 8 |
17 x 8 |
Low speed |
4.2 x 8 |
- |
- |
- |
- |
钢丝绳 |
Construction |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm) x
No. of ropes |
14 x 4 |
16 x 4 |
20 x 4 |
22.4 x 4 |
22.4 x 6 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
Low speed
( 50/60Hz) |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
电机
(Kw x P) |
High speed |
0.75 x 4 |
0.75 x 4 |
1.5 x 4 |
1.5 x 4 |
1.5 x 4
(2units) |
Low speed |
0.5 x 6 |
0.5 x 6 |
1.0 x 6 |
1.0 x 6 |
1.0 x 6
(2units) |
尺寸(约)
(mm) |
H |
730 |
775 |
1175 |
1175 |
1480 |
R |
1150 |
1150 |
1200 |
1300 |
1800 |
A |
510 |
565 |
670 |
670 |
930 |
B |
495 |
510 |
610 |
610 |
950 |
C |
645 |
650 |
880 |
880 |
980 |
G |
925 |
990 |
1110 |
1160 |
1405 |
K |
835 |
955 |
1170 |
1220 |
1480 |
W |
800 |
865 |
1000 |
1000 |
1540 |
D |
58 |
58 |
58 |
58 |
70 |
L |
850 |
850 |
870 |
935 |
1420 |
M |
110 |
110 |
140 |
140 |
180 |
N |
95 |
100 |
140 |
140 |
160 |
Φ P |
165 |
165 |
220 |
220 |
250 |
Φ Q |
195 |
195 |
250 |
250 |
280 |
重量(约.) (Kg) |
900 |
1200 |
1850 |
2300 |
3450 |
轨道 (Kg/m) |
15 |
15 |
22 |
22 |
30 |

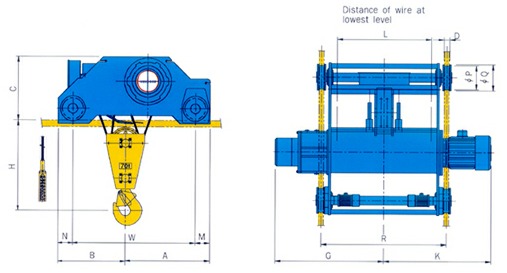

双轨道式葫芦（35 t ~ 70 t）
容量 (ton) |
35 |
50 |
60 |
70 |
型号 |
High Speed Traversing |
SD35-H12-MH |
SD50-H12-MH |
SD60-H12-MH |
SD70-H12-MH |
Low Speed Traversing |
SD35-H12-ML |
SD50-H12-ML |
SD60-H12-ML |
SD70-H12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
速度
(m/min) |
50/60Hz |
4/4.8 |
2.7/3.2 |
2/2.4 |
2/2.4 |
电机 (Kw x P) |
33 x 6 |
33 x 6 |
33 x 6 |
33 x 6 |
钢丝绳 |
Construction |
6 x Fi(25) |
6 x Fi(25) |
6 x Fi(25) |
6 x Fi(25) |
Dia.(mm) x
No. of ropes |
28 x 4 |
28 x 6 |
28 x 8 |
28 x 8 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
Low speed
( 50/60Hz) |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
电机
(Kw x P) |
High speed |
2.2 x 4 |
2.2 x 4
(2units) |
2.2 x 4
(2units) |
2.2 x 4
(2units) |
Low speed |
1.5 x 6 |
1.5 x 6
(2units) |
1.5 x 6
(2units) |
1.5 x 6
(2units) |
尺寸(约)
(mm) |
H |
1490 |
1680 |
1780 |
1780 |
R |
1600 |
2300 |
2800 |
2800 |
A |
1025 |
1432 |
1525 |
1525 |
B |
955 |
1243 |
1150 |
1150 |
C |
1013 |
1195 |
1195 |
1195 |
G |
1455 |
1780 |
2030 |
2030 |
K |
1460 |
1860 |
2110 |
2110 |
W |
1550 |
2125 |
2125 |
2075 |
D |
70 |
80 |
80 |
80 |
L |
1044 |
1430 |
1930 |
1930 |
M |
215 |
275 |
275 |
300 |
N |
215 |
275 |
275 |
300 |
Φ P |
355 |
450 |
450 |
500 |
Φ Q |
395 |
490 |
490 |
540 |
重量(约) (Kg) |
5200 |
7000 |
8500 |
9000 |
轨道(Kg/m) |
37 |
50 |
50 |
50 |

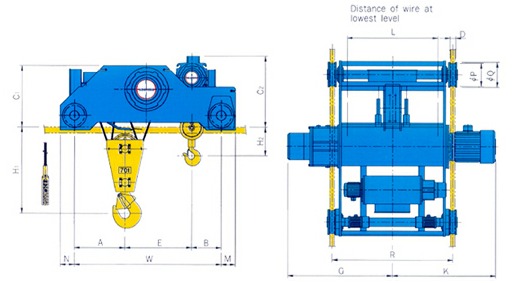

组合式葫芦（7.5/3 t ~ 30/5 t）
容量 (ton) |
7.5/3 |
10/3 |
15/5 |
20/5 |
30/5 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SD7.5/3-H12-MH |
SD10/3-H12-MH |
SD15/5-H12-MH |
SD20/5-H12-MH |
SD30/5-H12-MH |
High-Low |
SD7.5/3-H12-ML |
SD10/3-H12-ML |
SD15/5-H12-ML |
SD20/5-H12-ML |
SD30/5-H12-ML |
Low-High |
SD7.5/3-L12-MH |
SD10/3-L12-MH |
SD15/5-L12-ML |
SD20/5-L12-MH |
SD30/5-L12-MH |
Low-Low |
SD7.5/3-L12-ML |
SD10/3-L12-ML |
SD15/5-L12-ML |
SD20/5-L12-ML |
SD30/5-L12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
速度
(m/min) |
High speed
( 50/60Hz) |
3.1/3.8 |
7.5/9 |
3.7/4.5 |
7.5/9 |
3.5/4.2 |
4.7/5.6 |
3.5/4.2 |
4.7/5.6 |
2.3/2.8 |
4.7/5.6 |
Low speed
( 50/60Hz) |
2.3/2.8 |
3.7/4.5 |
- |
3.7/4.5 |
- |
3.5/4.2 |
- |
3.5/4.2 |
- |
3.5/4.2 |
电机
(Kw x P) |
High speed |
5.5 x 6 |
5.5 x 4 |
9 x 8 |
5.5 x 4 |
13 x 8 |
5.5 x 6 |
17 x 8 |
5.5 x 6 |
17 x 8 |
5.5 x 6 |
Low speed |
4.2 x 8 |
2.8 x 8 |
- |
2.8 x 8 |
- |
4.2 x 8 |
- |
4.2 x 8 |
- |
4.2 x 8 |
钢丝绳 |
Construction |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm) x
No. of ropes |
14 x 4 |
12 x 2 |
16 x 4 |
12 x 2 |
20 x 4 |
16 x 2 |
22.4 x 4 |
16 x 2 |
22.4 x 6 |
16 x 2 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
Low speed
( 50/60Hz) |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
电机
(Kw x P) |
High speed |
0.75 x 4 |
0.75 x 4 |
1.5 x 4 |
1.5 x 4 |
1.5 x 4
(2units) |
Low speed |
0.5 x 6 |
0.5 x 6 |
1 x 6 |
1 x 6 |
1 x 6
(2units) |
尺寸(约)
(mm) |
H1 |
730 |
775 |
1175 |
1175 |
1480 |
H2 |
350 |
350 |
365 |
350 |
300 |
R |
1150 |
1150 |
1200 |
1300 |
1800 |
A |
400 |
410 |
550 |
550 |
790 |
B |
350 |
350 |
390 |
480 |
455 |
E |
700 |
830 |
710 |
690 |
935 |
W |
1450 |
1590 |
1650 |
1720 |
2180 |
M |
110 |
110 |
140 |
140 |
180 |
N |
95 |
100 |
140 |
140 |
160 |
C1 |
645 |
650 |
880 |
880 |
980 |
C2 |
770 |
770 |
970 |
970 |
990 |
G |
925 |
990 |
1110 |
1160 |
1405 |
K |
835 |
955 |
1170 |
1220 |
1480 |
L |
850 |
850 |
870 |
935 |
1418 |
D |
58 |
58 |
58 |
58 |
70 |
Φ P |
165 |
165 |
220 |
220 |
250 |
Φ Q |
195 |
195 |
250 |
250 |
280 |
重量(约) (Kg) |
1450 |
1700 |
2475 |
3200 |
4200 |
轨道(Kg/m) |
15 |
15 |
22 |
22 |
30 |

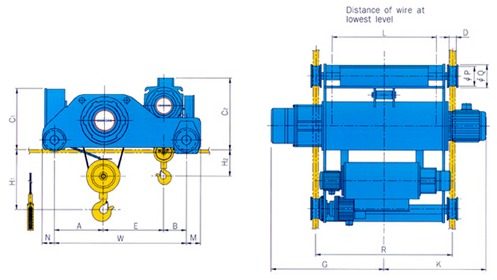

组合式葫芦（35/10 t ~ 70/20 t）
容量 (ton) |
35/10 |
50/15 |
60/20 |
70/20 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SD35/10-H12-MH |
SD50/15-H12-MH |
SD60/20-H12-MH |
SD70/20-H12-MH |
High-Low |
SD35/10-H12-ML |
SD50/15-H12-ML |
SD60/20-H12-ML |
SD70/20-H12-ML |
Low-High |
SD35/10-L12-MH |
- |
- |
- |
Low-Low |
SD35/10-L12-ML |
提升 |
Max. Lift(m) |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
速度
(m/min) |
High speed
( 50/60Hz)
Low speed
( 50/60Hz) |
4/4.8 |
3.7/4.5 |
2.7/3.2 |
3.5/4.2 |
2/2.4 |
3.5/4.2 |
2/2.4 |
3.5/4.2 |
电机
(Kw x P) |
High speed
( Low speed) |
33 x 6 |
9 x 8 |
33 x 6 |
13 x 8 |
33 x 6 |
17 x 8 |
33 x 6 |
17 x 8 |
钢丝绳 |
Construction |
6 x Fi(25) |
6 x 37 |
6 x Fi(25) |
6 x 37 |
6 x Fi(25) |
6 x 37 |
6 x Fi(25) |
6 x 37 |
Dia.(mm) x
No. of ropes |
28 x 4 |
16 x 4 |
28 x 6 |
20 x 4 |
28 x 8 |
22.4 x 4 |
28 x 8 |
22.4 x 4 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
12.5/15 |
12.5/15 |
12.5/15 |
12.5/15 |
Low speed
( 50/60Hz) |
8.3/10 |
8.3/10 |
8.3/10 |
8.3/10 |
电机
(Kw x P) |
High speed |
2.2 x 4 |
2.2 x 4
(2units) |
2.2 x 4
(2units) |
2.2 x 4
(2units) |
Low speed |
1.5 x 6 |
1.5 x 6
(2units) |
1.5 x 6
(2units) |
1.5 x 6
(2units) |
尺寸(约)
(mm) |
H1 |
1490 |
1680 |
1780 |
1780 |
H2 |
170 |
190 |
383 |
358 |
R |
1600 |
2300 |
2800 |
2800 |
A |
968 |
968 |
968 |
943 |
B |
607 |
607 |
607 |
582 |
E |
1375 |
1375 |
1375 |
1375 |
W |
2950 |
2950 |
2950 |
2900 |
M |
215 |
275 |
275 |
300 |
N |
215 |
275 |
275 |
300 |
C1 |
1013 |
1220 |
1220 |
1220 |
C2 |
1235 |
1570 |
1607 |
1607 |
G |
1455 |
1780 |
2030 |
2030 |
K |
1460 |
1860 |
2110 |
2110 |
L |
1044 |
1430 |
1930 |
1930 |
D |
70 |
80 |
80 |
80 |
Φ P |
355 |
450 |
450 |
500 |
Φ Q |
395 |
490 |
490 |
540 |
重量(约) (Kg) |
7000 |
9000 |
11200 |
12400 |
轨道 (Kg/m) |
37 |
50 |
50 |
50 |
低举型葫芦（1 t ~ 5 t）
容量 (ton) |
1 |
2 |
2.8 |
3 |
5 |
型号 |
Hoisting speed
(High-Low)
Traversing speed
(High-Low) |
High-High |
SL1-H6-MH |
SL2-H6-MH |
SL2.8-H6-MH |
SL3-H6-MH |
SL5-H6-MH |
High-Low |
SL1-H6-ML |
SL2-H6-ML |
SL2.8-H6-ML |
SL3-H6-ML |
SL5-H6-ML |
Low-High |
SL1-L6-MH |
SL2-L6-ML |
SL2.8-L6-MH |
SL3-L6-MH |
SL5-L6-MH |
Low-Low |
SL1-L6-ML |
SL2-L6-ML |
SL2.8-L6-ML |
SL3-L6-ML |
SL5-L6-ML |
提升 |
Max. Lift(m) |
6 |
6 |
6 |
6 |
6 |
速度
(m/min) |
High speed
( 50/60Hz) |
10/12 |
8.4/10 |
7.5/9 |
7.5/9 |
4.7/5.6 |
Low speed
( 50/60Hz) |
6.6/8 |
5.4/6.5 |
3.7/4.5 |
3.7/4.5 |
3.5/4.2 |
电机
(Kw x P) |
High speed |
2.2 x 4 |
3.7 x 4 |
5.0 x 4 |
5.5 x 4 |
5.5 x 6 |
Low speed |
1.5 x 6 |
2.5 x 6 |
2.5 x 8 |
2.8 x 8 |
4.2 x 8 |
钢丝绳 |
Construction |
6 x 19 |
6 x 19 |
6 x 37 |
6 x 37 |
6 x 37 |
Dia.(mm) x
No. of ropes |
6 x 4 |
8 x 4 |
9 x 4 |
9 x 4 |
11.2 x 4 |
制动器 |
DC magnet disc brake |
横动 |
速度
(m/min) |
High speed
( 50/60Hz) |
20/24 |
20/24 |
20/24 |
20/24 |
20/24 |
Low speed
( 50/60Hz) |
13/16 |
13/16 |
13/16 |
13/16 |
13/16 |
电机
(Kw x P) |
High speed |
0.4 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
Low speed |
0.2 x 6 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
0.75 x 4 |
尺寸(约)
(mm) |
H |
480 |
570 |
585 |
585 |
750 |
A |
500 |
595 |
625 |
625 |
715 |
B |
480 |
555 |
555 |
555 |
625 |
C |
405 |
455 |
510 |
510 |
584 |
D |
290 |
385 |
395 |
395 |
466 |
G |
255 |
260 |
260 |
260 |
275 |
K |
200 |
225 |
225 |
225 |
275 |
I型梁和间距
(mm) |
a x b x t |
S |
T |
S |
T |
S |
T |
S |
T |
S |
T |
200 x 100 x 7 |
38 |
60 |
33 |
45 |
- |
- |
- |
- |
- |
- |
250 x 125 x 7.5 |
37 |
85 |
34 |
76 |
34 |
76 |
34 |
76 |
46 |
68 |
300 x 150 x 10 |
32 |
110 |
29 |
95 |
23 |
95 |
23 |
95 |
40 |
86 |
最小曲率半径 (m) |
1.5 |
1.8 |
1.8 |
1.8 |
2.3 |
重量(约) (Kg) |
200 |
350 |
440 |
440 |
680 |
|
上海武田机电有限公司，是专业的日本及欧美进口工业产品提供商。在欧洲,美国,日本及韩国拥有良好的渠道与深厚的关系，代理及经营多种品牌工业产品，产品涵盖传动机械,液压机械,流体机械,工业控制及测量工具等系列，产品广泛地应用于钢铁、冶金、石油、风能、环保、汽车、化工、轮胎、造纸、印刷、电力、水力、港口及工业制造行业...
|
|
|
|
|
